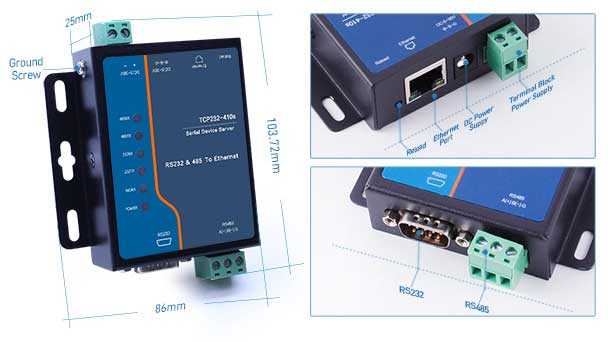

TCP232-410s is a multi-functional serial-to-Ethernet module that enables bidirectional transparent data transmission between Ethernet port and serial ports. TCP232-410s is a dual serial port server, using the Cortex-M7 solution, the main frequency is up to 400MHz, with stronger performance, faster transmission speed and higher reliability. It comes with 1*RS232 and 1*RS485 serial ports, and the two serial ports can work simultaneously.

This serial device server supports various working modes such as TCP Server, TCP Client, UDP, Httpd Client, WebSocket, and can be easily configured via built-in webpage or Config Software.

At the same time, it integrates TCP/IP protocol stack, which allows users to easily complete the serial-to-Ethernet conversation, saving manpower and development time, making products faster to market and enhancing competitiveness.
