1.Product overview

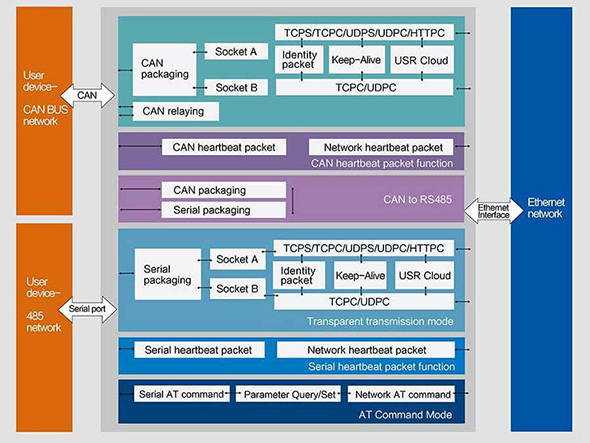

CANET200 is a communication device which can realize data transmission between CAN and network side.

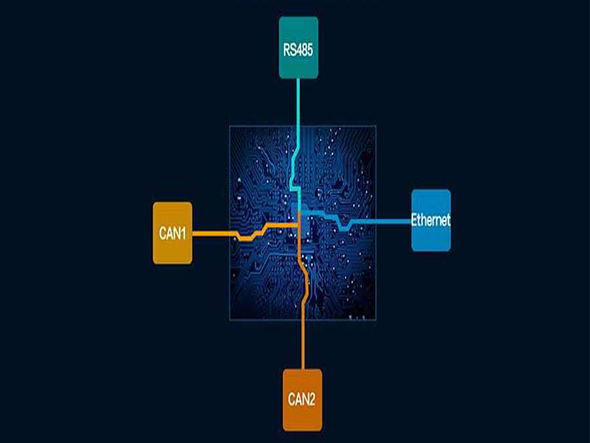

CANET200 supports two CAN interfaces, one Ethernet interface and TCP/IP protocol stack. User can  realize interconnection between CAN-bus network and Ethernet network to extend the CAN-bus network by  CANET200.

CANET200 also has one RS485 serial port which is independent to CAN and it can realize data  transmission between serial device and Ethernet.

 2.Product features

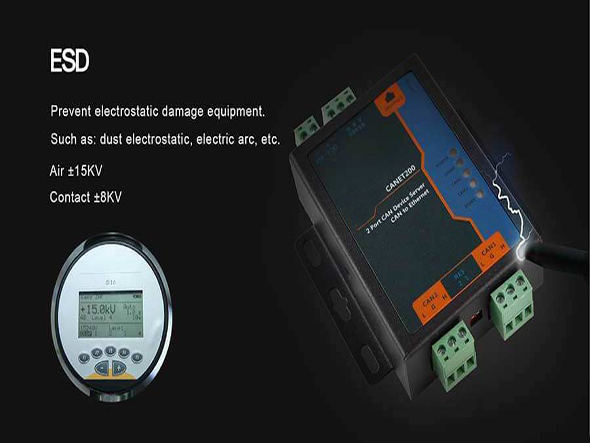

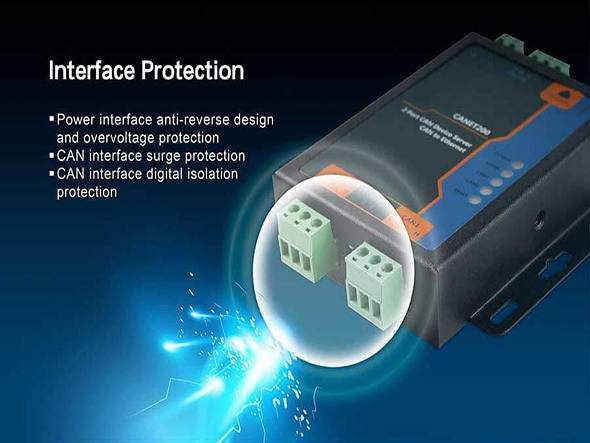

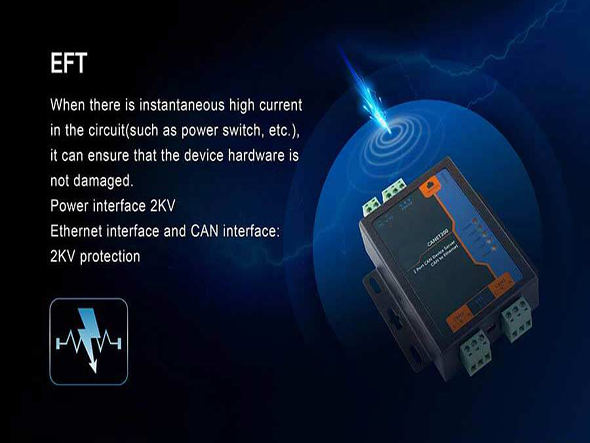

All-around hardware protection. CAN, serial port, Ethernet interface and power interface all have high-level protection to adapt harsh industrial environment.

10/100Mbps Ethernet interface. Support Auto-MDI/MDIX.

Support CAN ID filtering function, various filtering function make using module more secure.

One port supports two sockets.

CAN baud rate ranges from 10K~1Mbps; support BASIC and LOOPBACK work modes.

Support static IP function or DHCP function; support searching device in network by UDP broadcast.

Support restoring default settings by Reload button.

RJ45 has Link/Data LED; Ethernet interface has external isolation transformer and supports 1.5KV electromagnetic isolation.

Support upgrading firmware by network.

Support modifying Web Server port(Default is 80).

Support Keep-Alive function.

Support CAN relay function.

Support switching between CAN and RS485.
